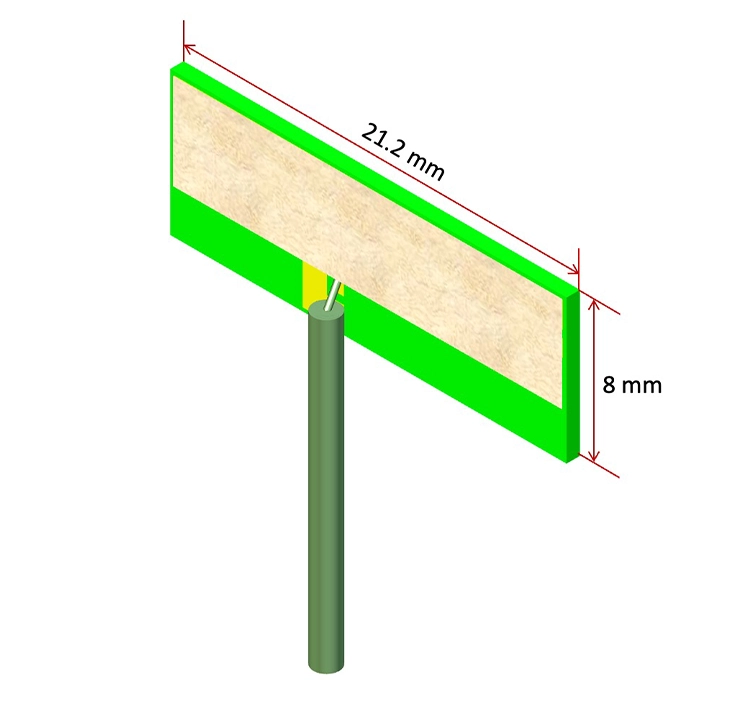

QRC06001
The QuantalRF QRC06001 is a high-efficiency 5-GHz PCB antenna for dynamic frequency selection Wi-Fi. This design is intended to provide omnidirectional radiation pattern, and even though it is realized on conventional low-cost FR-4 material with exceptionally compact form factor, it has proven a remarkable total efficiency of about 90% averaged across the 5.15GHz – 5.835GHz band. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.
QRA07011
The QuantalRF QRA07011 a compact, high-efficiency PCB antenna for dual-band Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands area. The QRA07011 provides superior efficiency compared to other antennas of similar size which can be utilized for longer range and/or reduced power consumption.

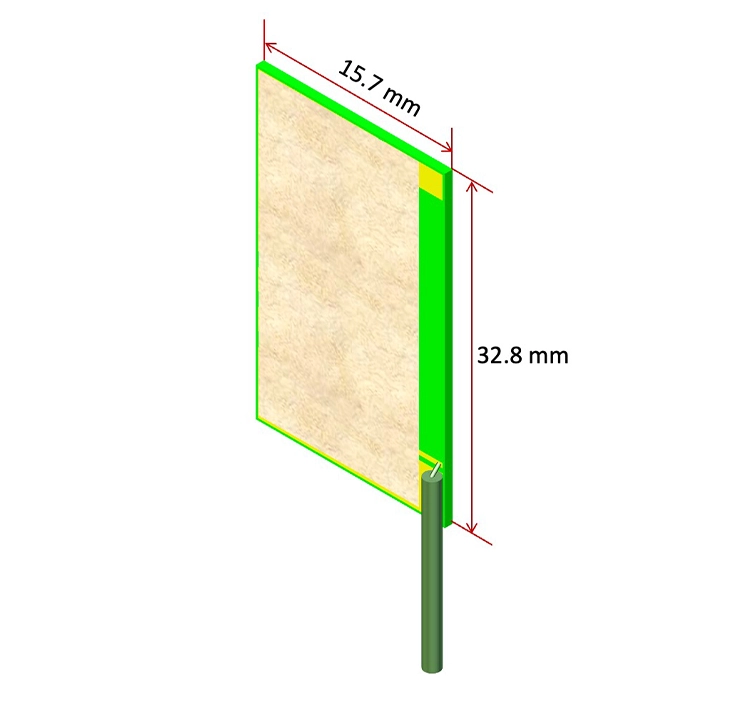

QRC03001
The QRC03001 is a high-efficiency 2.4-GHz PCB antenna for IoT/BLE applications. This design is intended to provide omnidirectional radiation pattern with linear polarization and superior efficiency across the 2.4G band. It’s a versatile design and can be used either as an external antenna or an embedded solution. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.
QRC06003
The QuantalRF QRC06003 is a high efficiency dual-band (2.4/5 GHz) PCB antenna for Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. The QRRC06003 features an exceptionally small footprint and fits within extremely compact form factors. Nevertheless, it provides high efficiency and omnidirectional radiation pattern across the 2.4/5 GHz bands. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.

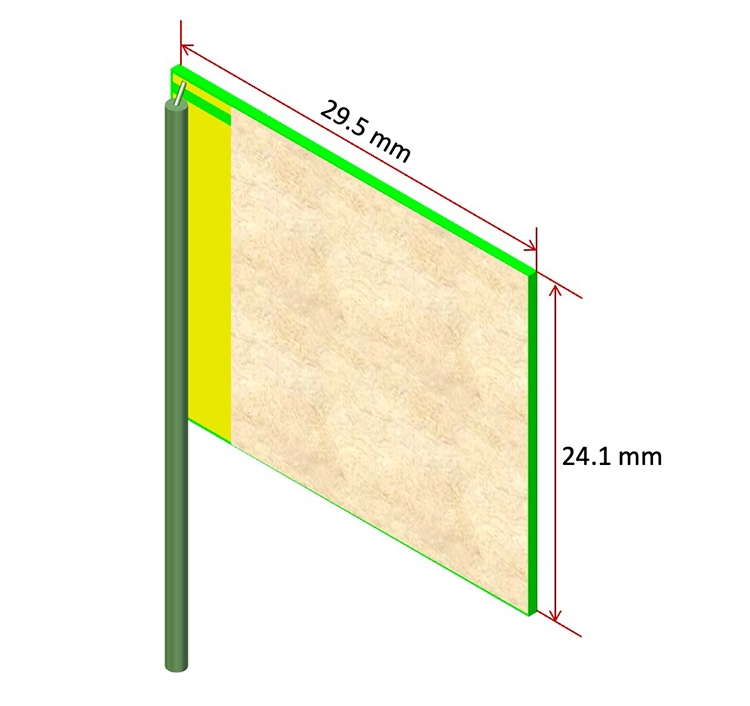

QRB06001
The QuantalRF QRB06001 is a high-efficiency dual-band (2.4/5GHz) PCB antenna for Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. While providing an omnidirectional radiation pattern in the 2.4/5G band, this design is intended to provide significant isolation in-between the 5G and 6G bands i.e., 5.835GHz – 5.945GHz when combined with the QRC07004 antenna. This combination could be ideal for applications where several 5G and 6G antennas are placed in close proximity of each other. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.
QRC07004
The QuantalRF QRC07004 is a compact high-efficiency 6-GHz PCB antenna for Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. While providing an omnidirectional radiation pattern in the 6G band, this design is intended to provide a significant isolation in-between the 5G and 6G bands i.e., 5.835GHz – 5.945GHz when combined with the QRB06001 antenna. This combination could be ideal for applications where several 5G and 6G antennas are placed in close proximity of each other. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.

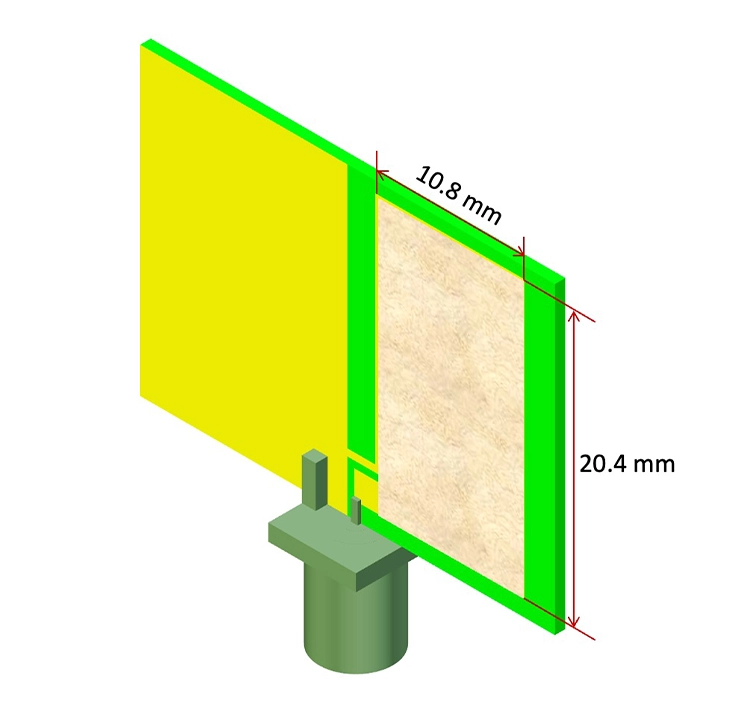

QRC06020
The QuantalRF QRC06020 a compact, high-efficiency PCB antenna for dual-band Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands area. The QRC06020 provides superior efficiency compared to other antennas of similar size which can be utilized for longer range and/or reduced power consumption.
