QRC07004

6 GHz Single-Band Antenna With omnidirectional radiation pattern
The QuantalRF QRC07004 is a compact high-efficiency 6-GHz PCB antenna for Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. While providing an omnidirectional radiation pattern in the 6G band, this design is intended to provide a significant isolation in-between the 5G and 6G bands i.e., 5.835GHz – 5.945GHz when combined with the QRB06001 antenna. This combination could be ideal for applications where several 5G and 6G antennas are placed in close proximity of each other. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands are met.

Access the Ansys HFSS™ 3D antenna model.

DOWNLOAD DOCUMENTATION

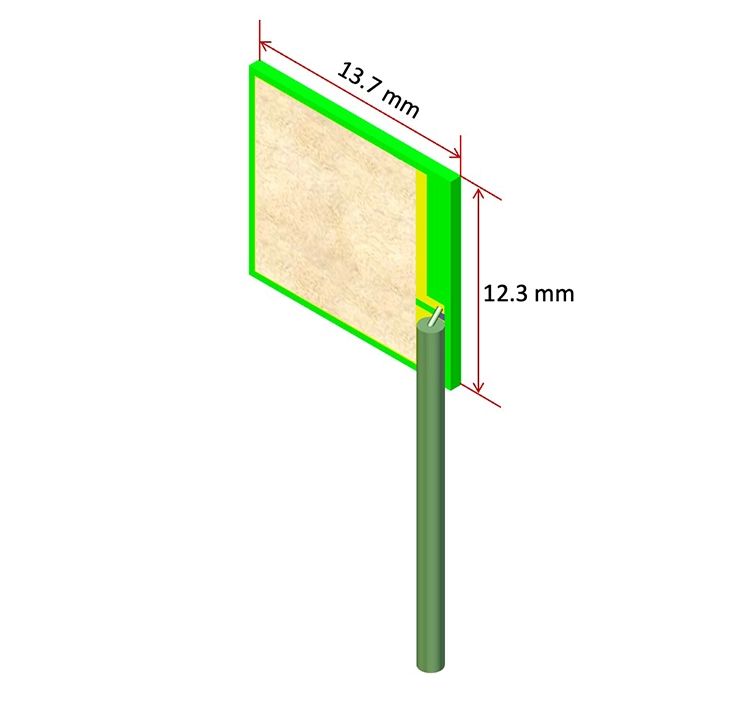

Diagram of QuantalRF DockOn CPL antenna QRC07004 with labeled dimensions and compact antenna structure.

Applications

  • Wi-Fi IoT modules
  • Routers

Features

  • Significant isolation between the 5G-6G bands
  • Omni-directional radiation pattern
  • Standard low-cost FR4 material

Key Specifications

  • Total efficiency
    • 80+% (6 GHz)
  • Peak gain
    • 3 dBi (6 GHz)
