Dockon^® Antennas

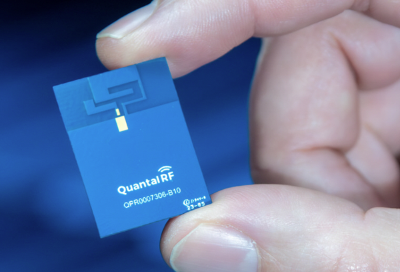

DockOn^® low-cost, high efficiency antennas

QuantalRF is the innovator of the unique, patented CPL antenna technology.

Unparalleled efficiency for longer range and lower power consumption
True omni-directional radiation for higher reliability and mobility
Low-cost, smallest footprint antenna on standard material substrates
Fast design cycle, optimized for the application and form factor
Licensing based on patented technology
Proven commercial applications from 100 MHz to 10 GHz, including GNSS, AMR, IoT/BTE, Wi-Fi, UWB, 5G

GNSS / GPS

Smart Meters

Wi-Fi

5G / 6G

EXPORT TO EXCEL


QRA07011		Wi-Fi AP	2.4 / 5 / 6 GHz Tri Band	2.4 / 5.15 / 5.945	2.5 / 5.835 / 7.15	53 / 76 / 73	4.4 / 4 / 4	13 / 13 / 10	1.6 / 1.6 / 2.0
QRB06001		Wi-Fi AP	2.4 / 5 GHz Dual Band Hi-Iso	2.4 / 5.15	2.5 / 5.835	80 / 90	2.4 / 5.6	11 / 8	1.8 / 2.2
QRC03001		Wi-Fi IoT/BLE	2.4 GHz Discrete	2.4	2.5	86	3.6	16	1.4
QRC06001		Wi-Fi AP	5 GHz Discrete	5.15	5.835	90	5	16	1.4
QRC06003		Wi-Fi Mobile	2.4 / 5 GHz Dual Band	2.4 / 5.15	2.5 / 5.835	61 / 77	4.1 / 3.7	11 / 13	1.7 / 1.5
QRC06020		Wi-Fi AP	2.4 / 5 GHz Dual Band	2.4 / 5.15	2.5 / 5.85	82 / 77	2.1 / 1.4	11 / 13	1.8 / 1.6
QRC07004		Wi-Fi AP	6GHz Discrete	5.945	7.125	90	3.4	13	1.6

Please contact us to discuss our DockOn^® antennas.

“CPL antenna technology is a simple and low-cost way of having antenna designs contribute more to the total isolation requirements for tri-band WI-Fi APs.”

— Dr. Abouzar Hamidipour, Staff RF Scientist
