Elementum™ Wi-Fi FEMs

QWX27105

5-7 GHz Wi-Fi 7 Front End Module

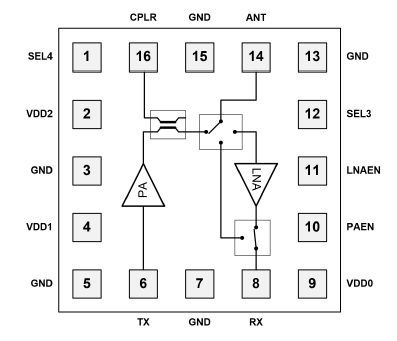

The QuantalRF QWX27105 is a highly integrated monolithic front-end module designed for high-performance Wireless Local Area Network (WLAN) applications supporting all standards up to Wi-Fi 8. It features a patent-pending PA architecture providing superior power efficiency, a low-loss single-pole, triple-throw (SP3T) switch and an LNA.
  • Support for Digital Pre-Distortion (DPD) is implemented for further improved EVM performance.
  • All RF ports are matched on-chip to 50 ohms to minimize the external components and application layout area.
  • The QWX27105 is fabricated as a monolithic die in CMOS SOI technology.
Contact Sales

DOWNLOAD DOCUMENTATION

Applications

  • Wi-Fi 7 and Wi-Fi 8 systems
  • Smartphones and other portable, rechargeable battery-operated devices
  • AI wearables, AR/ VR headsets

Features

  • PA with superior linear output power and best-in-class power efficiency for Wi-Fi 7 and Wi-Fi 8 high data rate applications
  • Monolithic die implementation in CMOS SOI ensures the smallest form factor
  • LNA with high gain, low power and bypass modes
  • Transmit with high power, mid power and low power modes

Key Specifications

  • 5150 – 7125 MHz
  • 3.8V supply voltage for PA; 1.8 supply voltage for LNA
  • Transmit output power:
    – 22 dBm, HE20, MCS0, 3 dB SEM margin
    – 20 dBm, VHT80, -33 dB DEVM
    – 17 dBm, HE160, -41 dB DEVM
    – 13 dBm, EHT320, -43 dB DEVM
  • Transmit gain: 30 dB (high gain mode)
  • Current consumption: 280 mA at 21 dBm output power
  • Noise figure: 1.9 dB
  • Receive gain: 15 dB
