QRC06020
2.4/5 GHz Compound-loop Dual-band Antenna

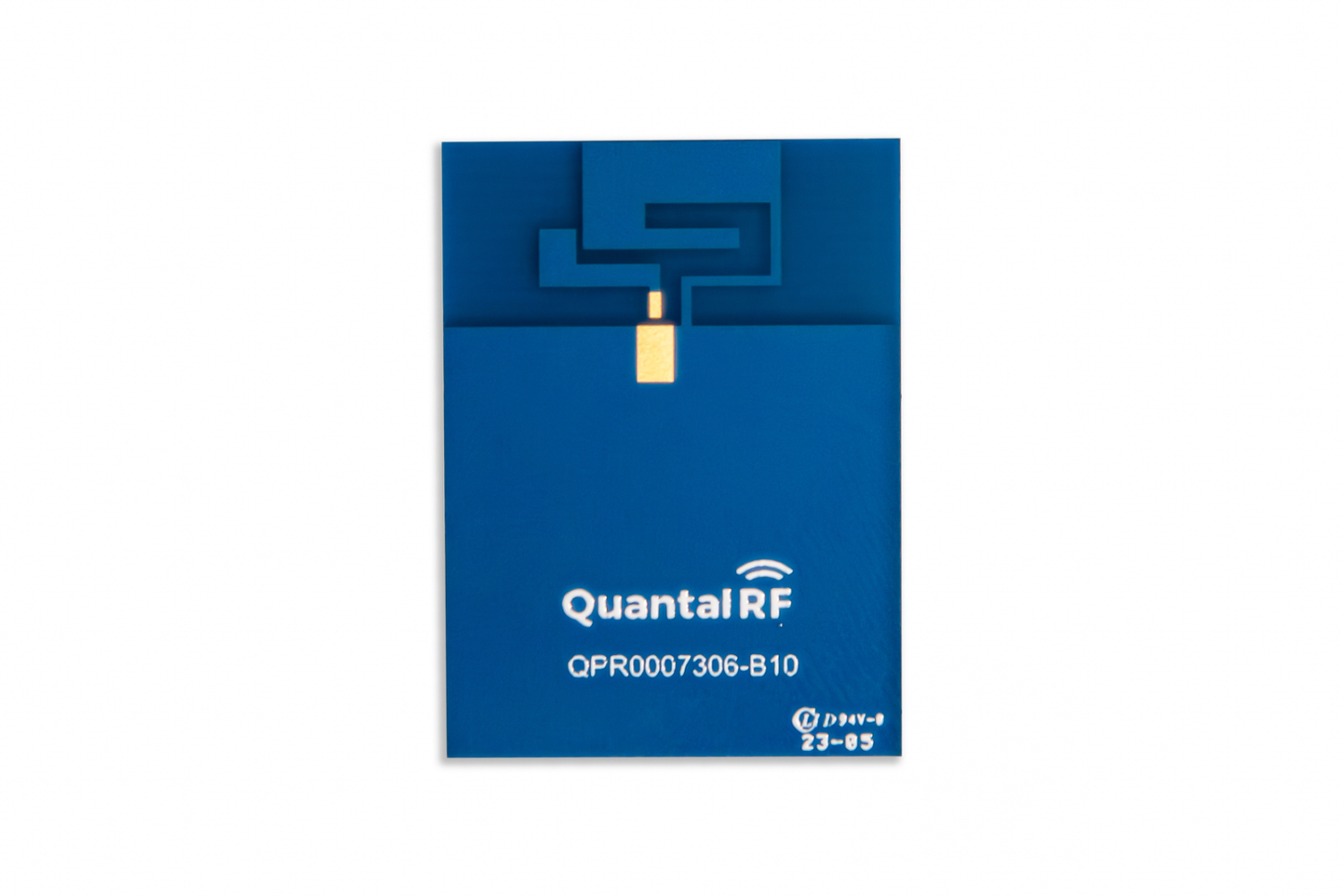

The QuantalRF QRC06020 a compact, high-efficiency PCB antenna for dual-band Wi-Fi 4, Wi-Fi 5, Wi-Fi 6 and Wi-Fi 7. The base design which is specified in this data sheet can be customized to specific use cases and applications to ensure that all customer demands area. The QRC06020 provides superior efficiency compared to other antennas of similar size which can be utilized for longer range and/or reduced power consumption.
Applications
- Wi-Fi IoT modules
- Routers
Features
- Excellent omni-directional radiation patterns
- Very compact form factor
- Standard low-cost FR4 material
Key Specifications
- Average efficiency
- 81.7% (2.4 GHz)
- 77.1% (5 GHz)
- Peak gain
- 2.13 dBi (2.4 GHz)
- 1.42 dBi (5 GHz)
